LM-EX60-3DIR

LINK-MI LM-EX60-3DIR HDMI Extender 60m Over Single Cat5e/6 Cable

Introduction:
1. Each set includes one transmitter and one receiver
2. Allows HDMI Audio/Video Signals and IR to be transmitted over a 60m single cat5e/6 cable ( UTP Cable )
3. Use single cat5e/6 cable to substitute HDMI cable to achieve long distance transmission, cat5e/6 cable follows the standard of IEEE-568B
4. Transmission distance reaches up to 60 meters under the video format of 1080p
5. Auto-adjustment of feedback, equalization and amplify
6. Signaling Rates up to 2.25Gbits at 1080p
7. With Infrared control signal passing through function
8. Supports 3D Video Format

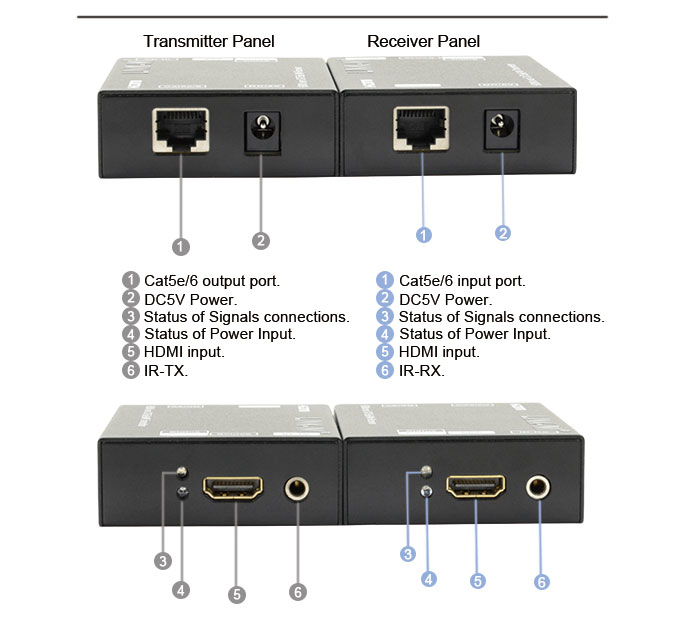

Description

Specification

Brand	LINK-MI
Model No.	LM-EX60-3DIR
Material	Metal
Color	Black
Interface	HDMI
Application	Extend HDMI Signal up to 60m Over Single Cat5e/6 Cable
Video Format	DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p/ 3D Video
Video Output	HDMI
Audio Format	DTS-HD Master Audio, Dolby True-HD etc
Transmission Distance	1080p 8-bit 60m ( Max. ) over cat5e/6/24AWG/Solid ( Recommend to use 23AWG Cat6 Cable )
Power Consumption	3 Watts ( Max. )
IR Frequency	38KHz
IR Wavelength	940nm
Dimension ( LWH )	1157035mm
Weight	260g ( Pair )
Operating Temperature / Humidity	-5 to +35 Degree Celsius / 5 to 90% RH ( No Condensation )
Input Video / DDC Signal	0.5 -1.0 Volts P-P / 5 Volts P-P ( TTL )

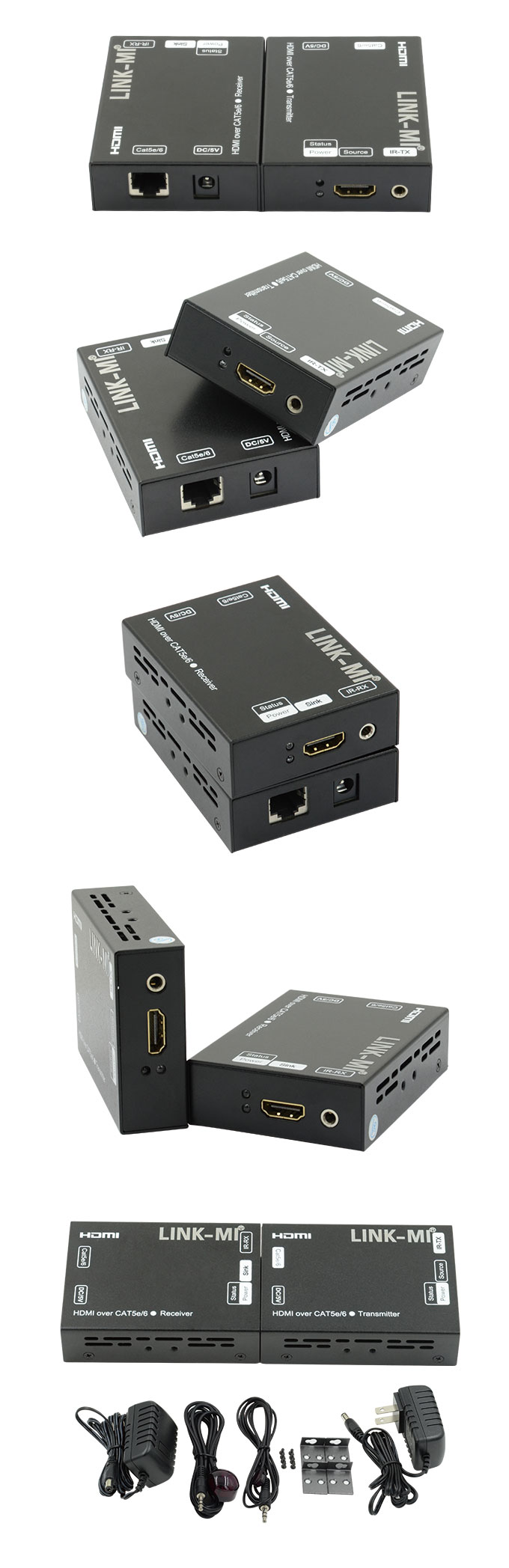

Packing Contents

1. Main Unit. 1set HDMI Extender

2. 2pcs DC 5V 1A Power Adapter

3. 1pcs IR TX ( IR Emitter Cable )

4. 1pcs IR RX Unit ( IR Receiver Cable )

5. 1pcs User's Manual
